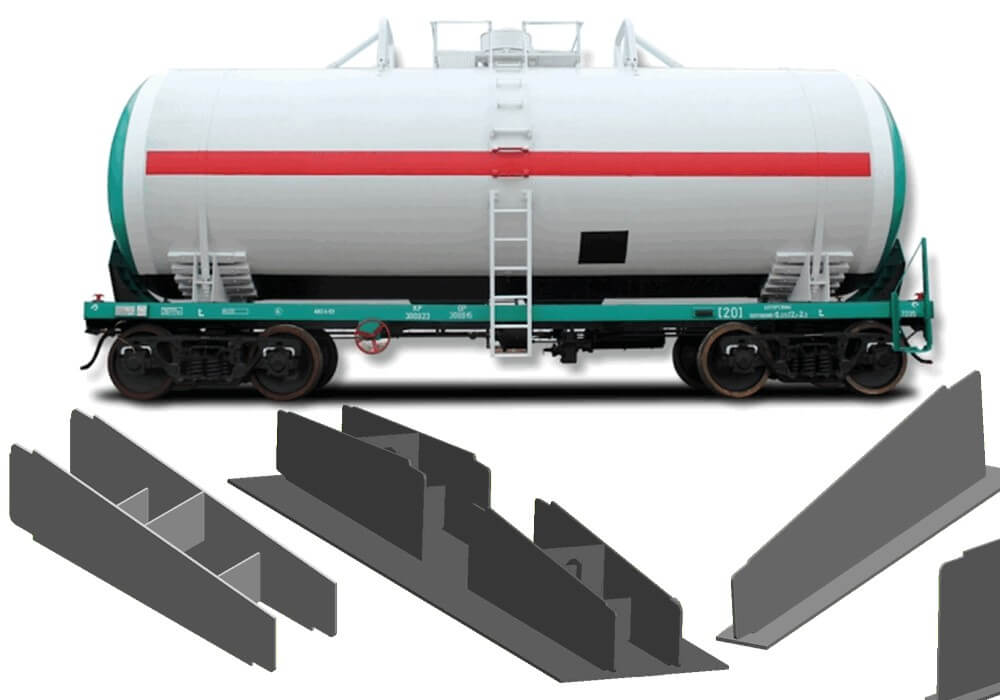

Robotic Welding Cell for Small Railway Carriage Components

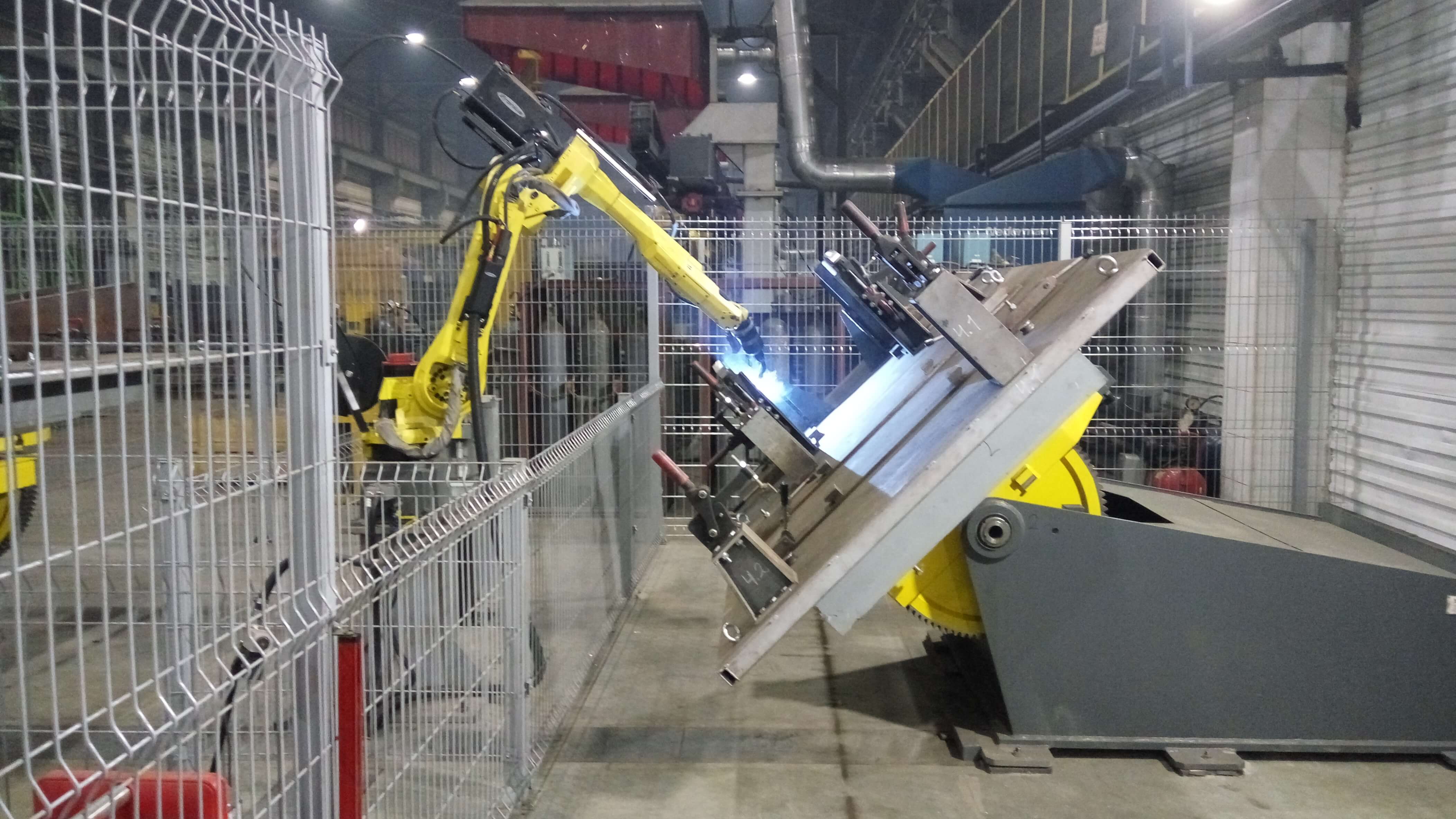

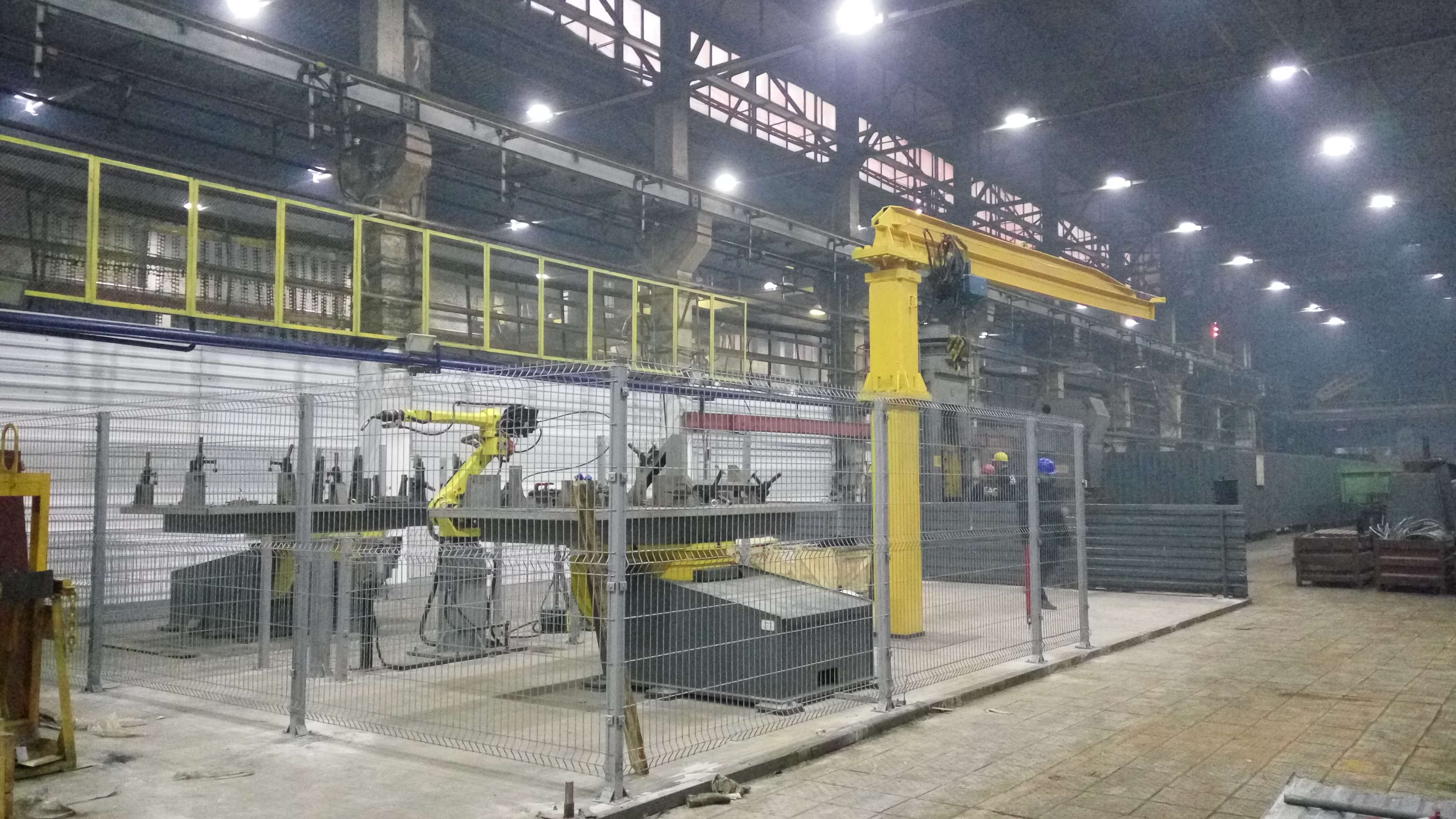

The process is organized around an operator-assisted part loading sequence. During the beam assembly stage, one welding operator performs the initial assembly. The completed assembly is then transferred by an overhead jib crane into a welding fixture mounted on the positioner of the robotic cell. This arrangement enables seamless integration of the cell into the existing production flow.

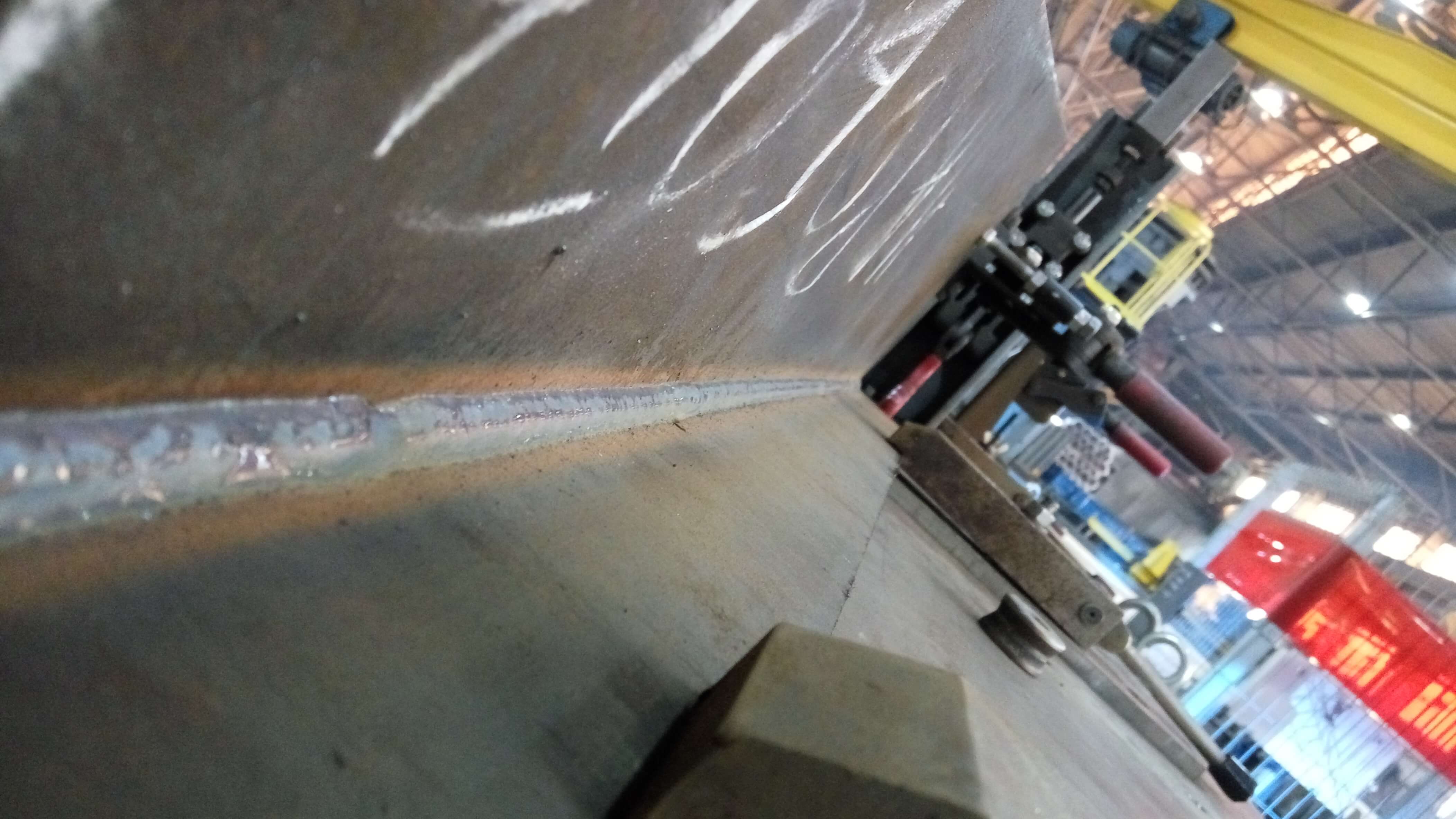

The cell is equipped with a laser seam-tracking system that accurately detects the weld joint position and automatically corrects the welding trajectory. The system operates autonomously under operator supervision, ensuring process stability and safe operation.

Key Benefits

• Automated welding of small railway carriage components;
• High weld positioning accuracy enabled by laser seam tracking;
• Integration into the existing production process;
• Consistent weld quality;
• Autonomous operation under operator supervision.

Implementation Results
The implementation of the robotic cell increases welding-line productivity, ensures consistent quality of small railway carriage components, and reduces reliance on manual welding operations.
